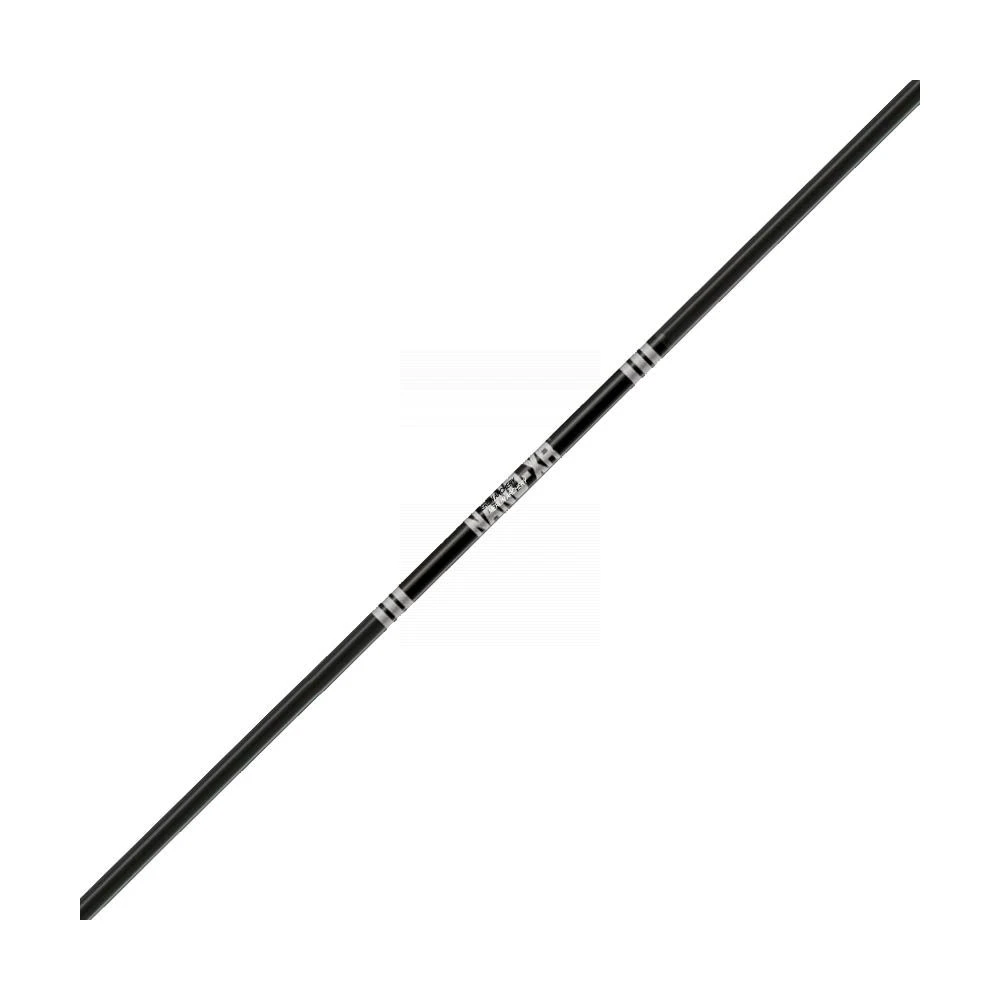

Carbon Express Nano XR Field – Shaft Only

The Nano-XR™ was the first target arrow engineered from 40-ton carbon to deliver superior downrange accuracy, strength and consistency shot after shot.

Its ultra-small diameter dramatically reduces cross-wind drift and is the ideal arrow for FITA, NAA and NFAA long-distance shooting. In side-by-side tests, the Nano-XR consistently out-performed comparable aluminium core carbon arrows in durability, recovery out of the bow, consistency and velocity.

Real Straightness: Every Nano arrow is laser checked for straightness to a remarkable 1/10,000 of an inch. Nano straightness of +/- 0.0015″ is a maximum measurement, not an average.

FEATURES:

Advanced Technology, Extreme Accuracy.

Straightness: +/- .0015″

Grain Weight Tolerance: +/- 1

Spine selection tolerance: ± 0.002″

SPECIFICATIONS:



MODEL	SPINE	DIAMETER	STOCK LENGTH	GPI
630	.630″	.196″	31″	6.6
580	.580″	.201″	31″	7.2
530	.530″	.203″	31″	7.5
490	.490″	.205″	32.5″	7.8
450	.450″	.208″	32.5″	8.1
410	.410″	.212″	32.5″	8.65
380	.380″	.214″	32.5″	9.0
